Custom Metrics Push

Push your own hourly metrics when the signal lives in a cron job, a sidecar, or a warehouse Costory cannot query live. Create a Custom metrics integration, POST points with an organization API key, then use them in Advanced Explorer like any other external metric. Use this when you need to:

Overlay a business counter (orders, jobs, active tenants) that only your app computes, then chart such as cost per order
Drive shared cost allocation from a usage key you already emit
Backfill historical hourly points onto the same path your hourly job uses

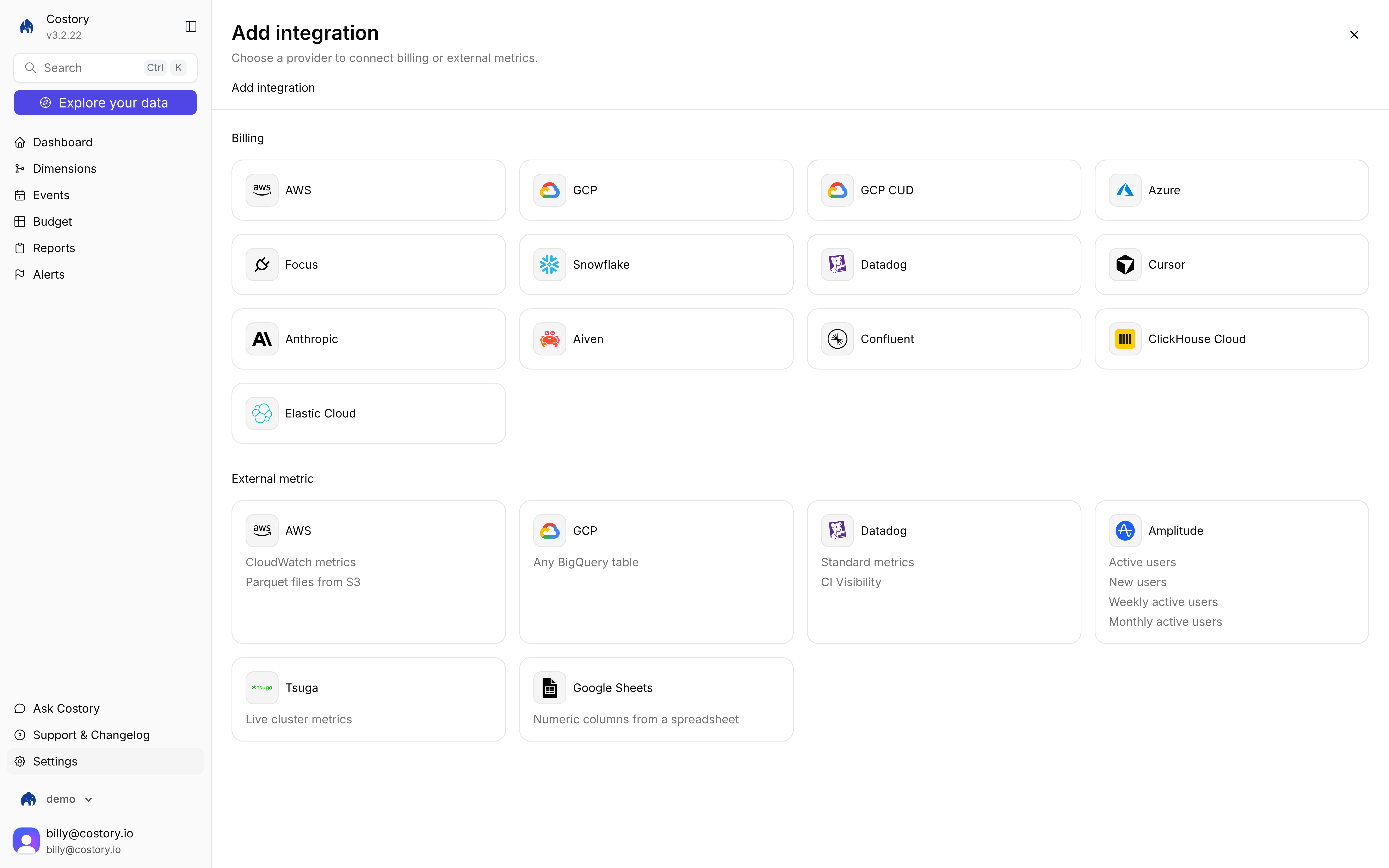

Add integration page showing the External metric section with AWS, GCP, Datadog, Amplitude, Tsuga, and Google Sheets — Add integration, External metric tiles

Before you begin, make sure you have:

Admin access in Costory (creating the integration is admin-only)
An organization API key (ak_*) from API Keys. User keys and browser sessions return 401 on ingest
Metrics already aggregated to the hour. Costory truncates every timestamp to the hour in UTC

Manual setup
Terraform

Create an organization API key

Open API Keys from the menu next to your name. Create an organization token (admins only). Store it as COSTORY_ORG_API_KEY. User-scoped tokens and session cookies cannot ingest points. See API overview.

Open Custom metrics

Go to Integrations, click + Add integration, then under External metric choose Custom metrics. The tile is Hourly points you push over HTTP. The connect URL is /integration/new/custom-metrics/push.

Name the connection

Set Connection name (default Custom metrics), then click Save connection. There is no Validate step. Costory creates an empty table for this integration. No vendor credentials.

Copy the ingest details

After save, Costory shows Custom metrics is ready, the Integration id, and a curl example. Keep the id. You can open Show details later from the integration menu.

POST hourly points

Send one or more points to POST /integrations/:id/metrics/points. Hourly jobs send one point. Backfill sends up to 10,000 on the same path.

curl -X POST "https://app-api.costory.io/integrations/YOUR_INTEGRATION_ID/metrics/points" \
  -H "Authorization: Bearer $COSTORY_ORG_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{"points":[{"metric_name":"orders","ts":"2026-09-02T15:00:00Z","value":42,"tags":{"env":"prod"}}]}'

A successful write returns 202 with inserted (rows after in-batch dedupe) and truncatedHours (distinct hour buckets written).

Refresh the catalog

Ingest does not update the metric picker. After the first push, open the integration menu and click Refresh metrics. New metric names and tag keys appear in Advanced Explorer after that refresh. Metrics that stop reporting stay in the catalog so saved queries keep resolving.

Query in Advanced Explorer

Click Explore your data, switch to Advanced, then + Add Metric. Open integrations and pick the Custom metrics source. Group by tag keys from the points you pushed. See Query after you connect.

Point payload

Each request body is { "points": [ ... ] } with 1 to 10,000 points.

Field	Type	Rules
`metric_name`	string	1 to 255 characters. No control characters. Opaque: Costory does not enforce a Prometheus name charset.
`ts`	ISO-8601 datetime with offset, or epoch milliseconds	Truncated to the hour in UTC before insert. Unix seconds (a ~1e9 number) are rejected.
`value`	number	Finite. `NaN` and infinity return 400.
`tags`	object	Optional. Defaults to `{}`. Keys must be SQL identifiers: start with a letter or `_`, then letters, digits, or `_` (max 128). Values are string, number, or boolean. Nested objects and arrays are not accepted.

Tag keys become Explorer group-bys. A key such as env-name is rejected because it is not a valid identifier.The last write for the same metric_name, hour, and tags wins. If one request repeats that key, the last array element is kept. Retrying a failed request can insert duplicates. Query-time last-write-wins hides them.

Python example

import os
import requests

integration_id = os.environ["COSTORY_CUSTOM_METRICS_ID"]
payload = {
    "points": [
        {
            "metric_name": "orders",
            "ts": "2026-09-02T15:00:00Z",
            "value": 42,
            "tags": {"env": "prod"},
        }
    ]
}

response = requests.post(
    f"https://app-api.costory.io/integrations/{integration_id}/metrics/points",
    headers={
        "Authorization": f"Bearer {os.environ['COSTORY_ORG_API_KEY']}",
        "Content-Type": "application/json",
    },
    json=payload,
    timeout=10,
)
response.raise_for_status()
print(response.json())

After you save

On the source row menu you can:

Show details (integration id and curl again)
Refresh metrics (catalog only, admin)
Remove Custom metrics integration (admin). Removal drops the table and catalog rows for that integration.

You can create more than one Custom metrics integration per organization, for example staging versus production push sources.Query the series through Costory MCP as well: list_metrics returns the catalog, and query accepts { type: "externalMetric", integrationId, metricName }.

Tag filters (conditions) are not available on Custom metrics in this version. Split series with group-by on tag keys instead.

Prometheus

Costory does not speak Prometheus remote-write. Run a sidecar next to Prometheus that maps name, timestamp, labels, and value onto this POST. Preaggregate to the hour before you send. Cron and sidecars must use the organization API key, not a session cookie.

FAQ

Why do I get 401 when I POST points?

The ingest path accepts only a Clerk organization API key (ak_* with an org_* subject). User API keys, session JWTs, and Swagger session auth return 401, even for admins. Create the token under API Keys as an organization token. See API overview.

I pushed points but Advanced Explorer is empty.

Click Refresh metrics on the integration menu. The catalog is not updated on ingest. Then pick the Custom metrics source under integrations and confirm the Period covers hours you wrote.

Can I send second-level timestamps?

Yes. Costory truncates them to the hour in UTC. Preaggregate in your job if several samples in the same hour should not collapse to the last write.

Can I send Unix seconds?

No. A numeric ts must be epoch milliseconds (12+ digits after 2001). Seconds look like 1750000000 and are rejected so they are not stored as 1970.

What happens if I push the same hour twice?

The later inserted_at wins for that metric name, hour, and tags. Explorer shows the last value.

Does Costory pull from my Prometheus or warehouse?

No. This connector only accepts HTTP POST. If the data already lives in BigQuery or Snowflake, use BigQuery or Snowflake Metrics instead.
